In the field of supporting industrial manufacturing, fabricating machinery components demands absolute precision down to every millimeter. Detailed plastic injection molding is not just a standard production process, but a perfect combination of precision mechanical engineering, materials science, and automated control technology. At Zeng Hsing, we understand that every plastic part, no matter how small, plays a pivotal role in the stable operation of an entire machinery system.
The challenge of precision and consistency in detailed plastic injection molding for machine parts
For machine parts, technical requirements are often much more stringent than those for standard household plastic products. The greatest challenges that businesses typically face during detailed plastic injection molding include:

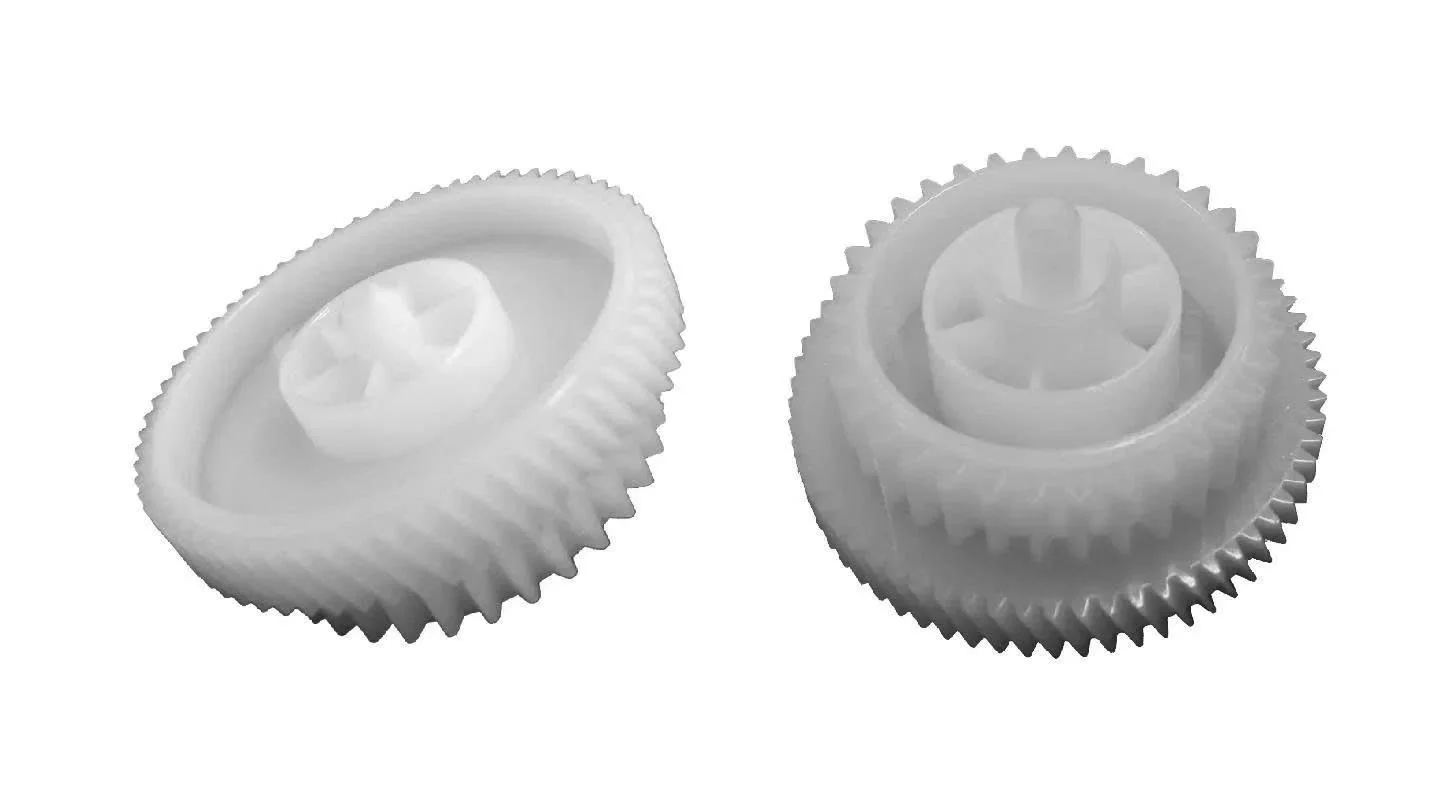

– Dimensional tolerance: Plastic mechanical parts (such as gears, camshafts, and couplings) require extremely tight tolerances to assemble seamlessly with other metal components.
– Mechanical durability: Machine parts frequently endure friction, pressure, and high temperatures during operation. This requires the internal plastic structure to be dense and free of air bubbles.
– Batch consistency: In an order of tens of thousands of products, the first and the last parts must have identical specifications to ensure smooth interchangeability and repairability.
Zeng Hsing resolves these challenges by standardizing every stage, from analyzing mold plastic flow to real-time injection pressure control.
>>>> See more: Industrial plastic injection molding specialized for ABS POM PP materials
Technical control process in detailed plastic injection molding at Zeng Hsing
To guarantee "consistency and surface finish", the detailed plastic injection molding process at our factory is executed through strict technical steps:
Optimized mold design
The mold is the "birthplace" of the plastic product. We utilize advanced simulation software to determine the optimal gate locations and venting systems. Controlling the plastic flow helps eliminate common defects such as weld lines or burn marks, thereby significantly improving the surface finish of the detailed parts.
Selection and processing of engineering plastic materials
Machine parts often require plastics with specialized performance characteristics. At Zeng Hsing, we proficiently handle various engineering plastic lines, such as:
• PA6/PA66 (Nylon): High heat and wear resistance.
• POM (Polyoxymethylene): Extremely high stiffness and a low coefficient of friction, ideal for gears.
• PBT/PET: Good dimensional stability in chemical environments.
All materials are thoroughly dried by a centralized dehumidifying system before entering the injection molding machines to prevent hydrolysis, which degrades part durability.
Managing injection parameters on modern machinery

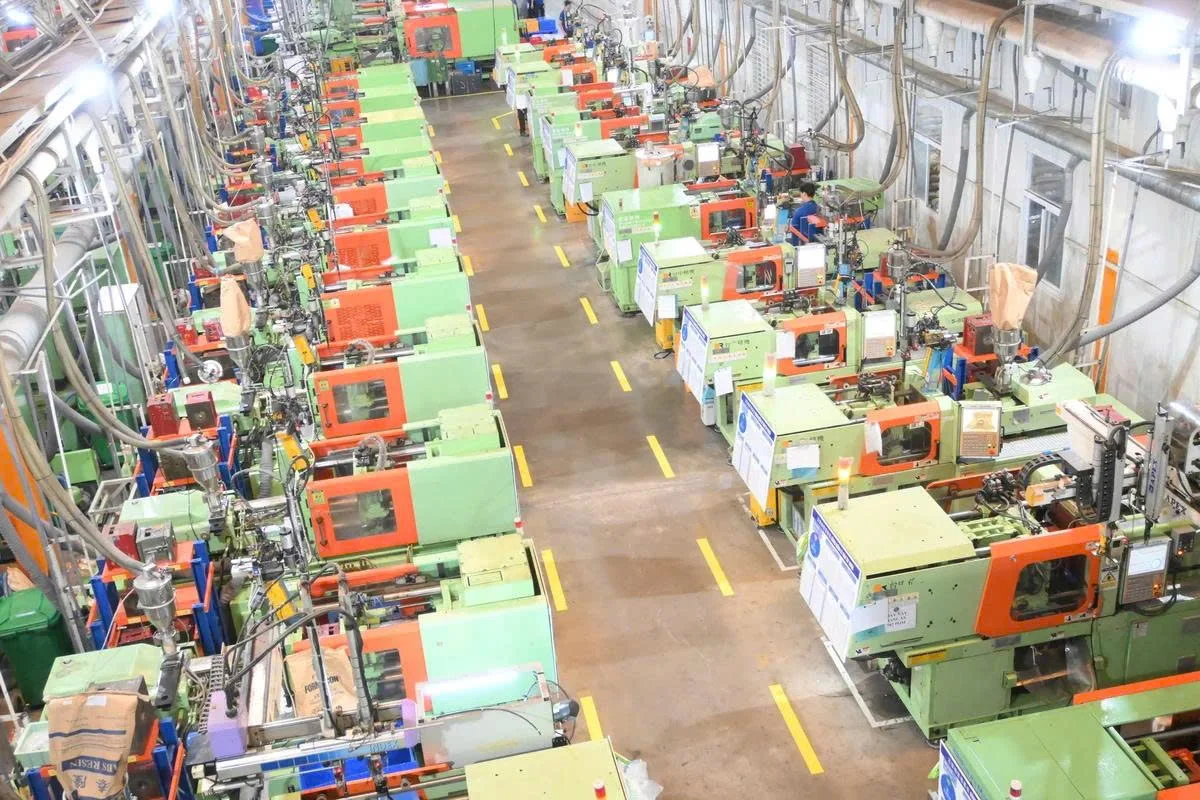

With an injection molding machine fleet ranging from 50T to 650T, we set detailed technical injection parameters for each mold type:
• Holding pressure: Maintaining the appropriate pressure after the plastic has filled the mold to compensate for shrinkage, ensuring that part dimensions do not deviate.
• Cooling cycle: The mold cooling system is calculated precisely to prevent parts from deforming or warping when ejected from the mold.
>>>> See more: Ultra-low tolerance industrial component plastic injection molding services
Surface finish standards and control of technical defects
The surface finish of a machine part is not just about aesthetics; it also affects operational performance. A surface that is too rough can cause high friction, while an uneven surface can lead to leaks or poor assembly fit.
Zeng Hsing is committed to thoroughly resolving defects that impact the detailed plastic injection molding surface:
√ Flash elimination: Achieved thanks to high-precision mold parting line closures and appropriate machine clamping forces.
√ Sink mark control: Optimizing the thick-to-thin wall structure of the parts and fine-tuning the injection pressure.
√ Custom surface finishing: We are capable of processing surfaces ranging from matte and technical textures to mirror-gloss finishes, depending on the operational characteristics of the machine part.
After molding, all plastic parts undergo visual inspections and dimensional measurements using specialized equipment such as digital calipers and 2D/3D coordinate measuring machines (CMM) to ensure that no defective products reach our customers.
>>>> See more: Zeng Hsing – Quality and affordable HCMC plastic injection molding workshop
Why is "consistency" the ultimate principle of Zeng Hsing?
In B2B manufacturing, inconsistency is the enemy of cost efficiency. If machine parts lack uniformity, our customers' assembly lines will face disruptions, and defect rates will spike.
Zeng Hsing guarantees consistency in detailed plastic injection molding through:
• Synchronized machinery systems: We invest in highly stable injection molding machine lines, minimizing variation between molding cycles.
• Robotic arm integration: Utilizing robots for part extraction and runner cutting ensures identical operations for every single product, avoiding unwanted physical impacts caused by human handling.

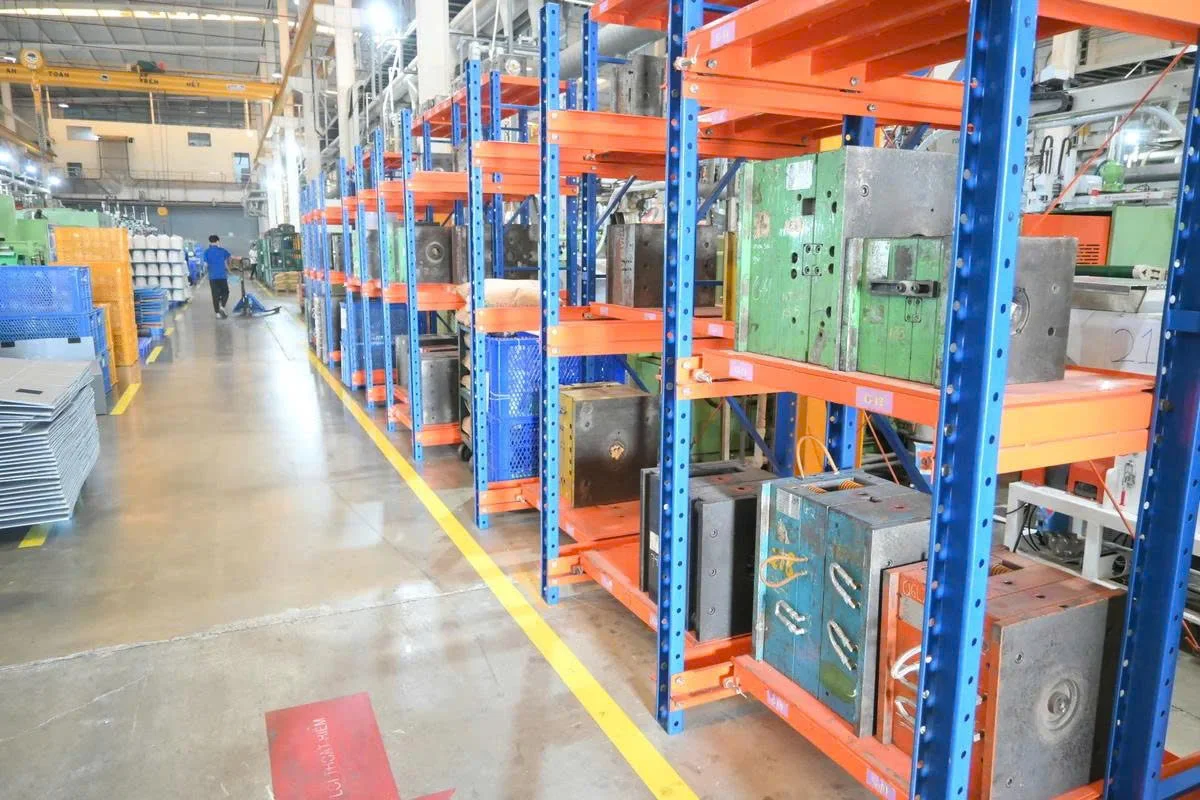

• Periodic mold maintenance: We follow a strict mold maintenance schedule to ensure molds do not experience wear after long-term use, keeping product dimensions well within allowable limits.

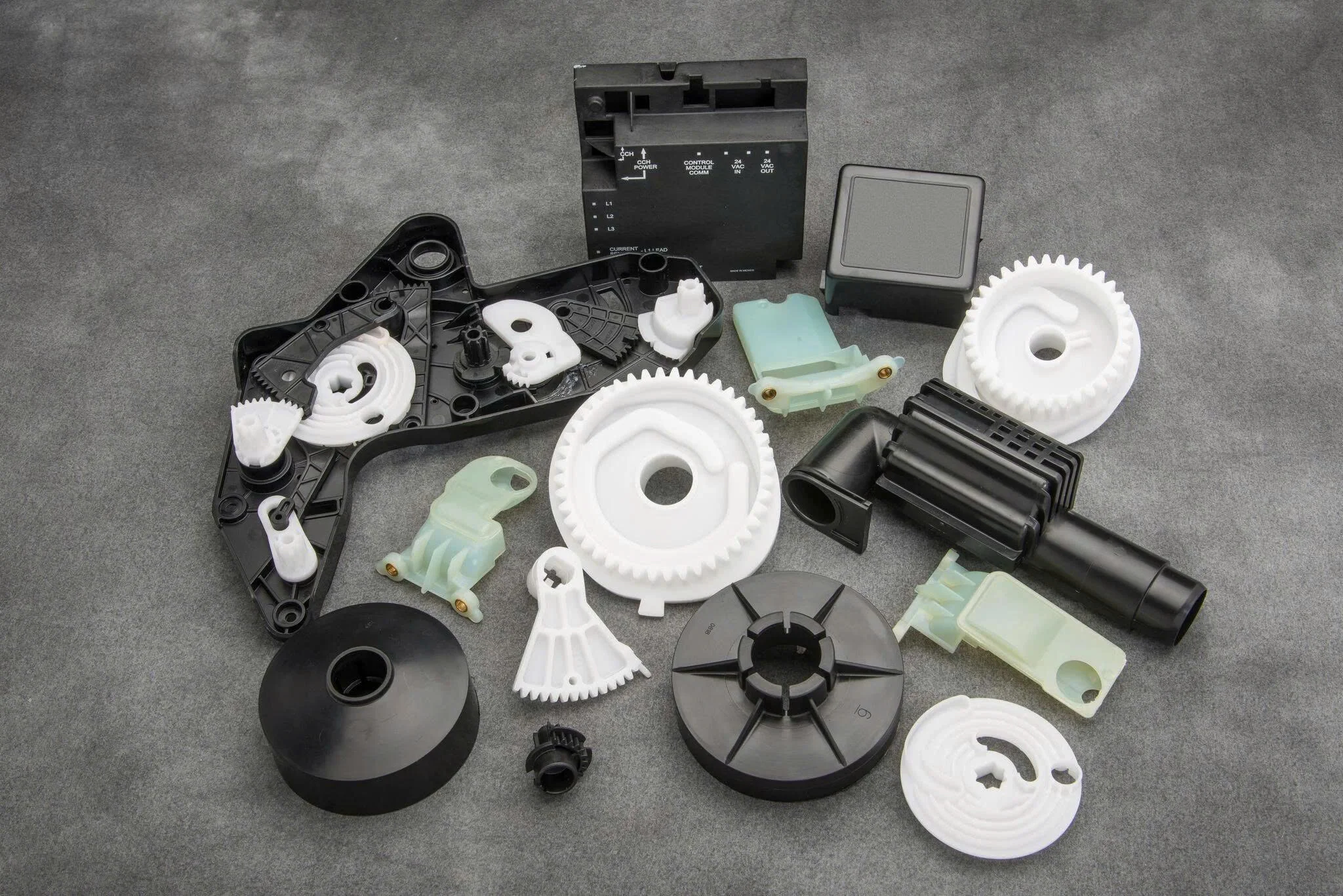

Multi-industry capabilities of Zeng Hsing's detailed plastic injection molding services
With extensive experience gained from manufacturing intricate parts for domestic sewing machines—which require exceptionally precise coordination between plastic and metal—Zeng Hsing has expanded its detailed plastic injection molding capabilities into various sectors:
– Electronics industry: Internal components for printers, photocopiers, and telecommunication equipment housings.
– Premium home appliances: Components for vacuum cleaners, water purifiers, and moving parts inside robotic vacuums.
– Automotive and motorcycle industry: Various buttons, electrical connectors, and engine component covers.
– Office equipment: Plastic gear systems and guide rails.
We are not just a processing workshop; we are a technical partner capable of advising customers on how to optimize plastic part structures for the most efficient and cost-effective production. If you are looking for a professional, experienced, and modernly equipped detailed plastic injection molding facility in Vietnam, contact Zeng Hsing today to discuss the optimal solution for your project.
