How are PCB assembly costs calculated?

   When launching electronic hardware manufacturing, project budget estimation is one of the most critical preliminary milestones for any enterprise. However, a standard PCB assembly quotation typically encompasses multiple technical cost drivers rather than simply the procurement expense of electronic parts. Understanding cost calculation methodologies and cost drivers helps hardware engineers and purchasing managers proactively optimize PCB layouts, eliminate redundant overhead, and safeguard finished product operating standards.

Core cost components in PCB assembly

   A standardized circuit board assembly quotation is typically broken down into four foundational cost categories:

          – Bare board substrate and component procurement costs: This item covers bare printed circuit board fabrication—dictated by layer counts, finished copper weight, and base dielectric laminate materials (standard FR-4, aluminum core, or ceramic substrates)—alongside the active and passive electronic components populated across the schematic.

          – Initial engineering line setup charges: This represents a non-recurring setup fee per prototype build or new mass production lot release. It includes laser-cut stainless steel solder paste stencils, machine vision coordinate programming for automated pick-and-place systems, and conveyor thermal profiling across convection reflow ovens.

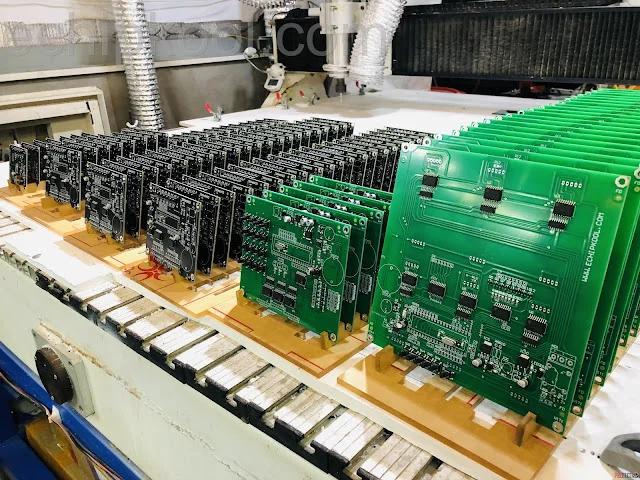

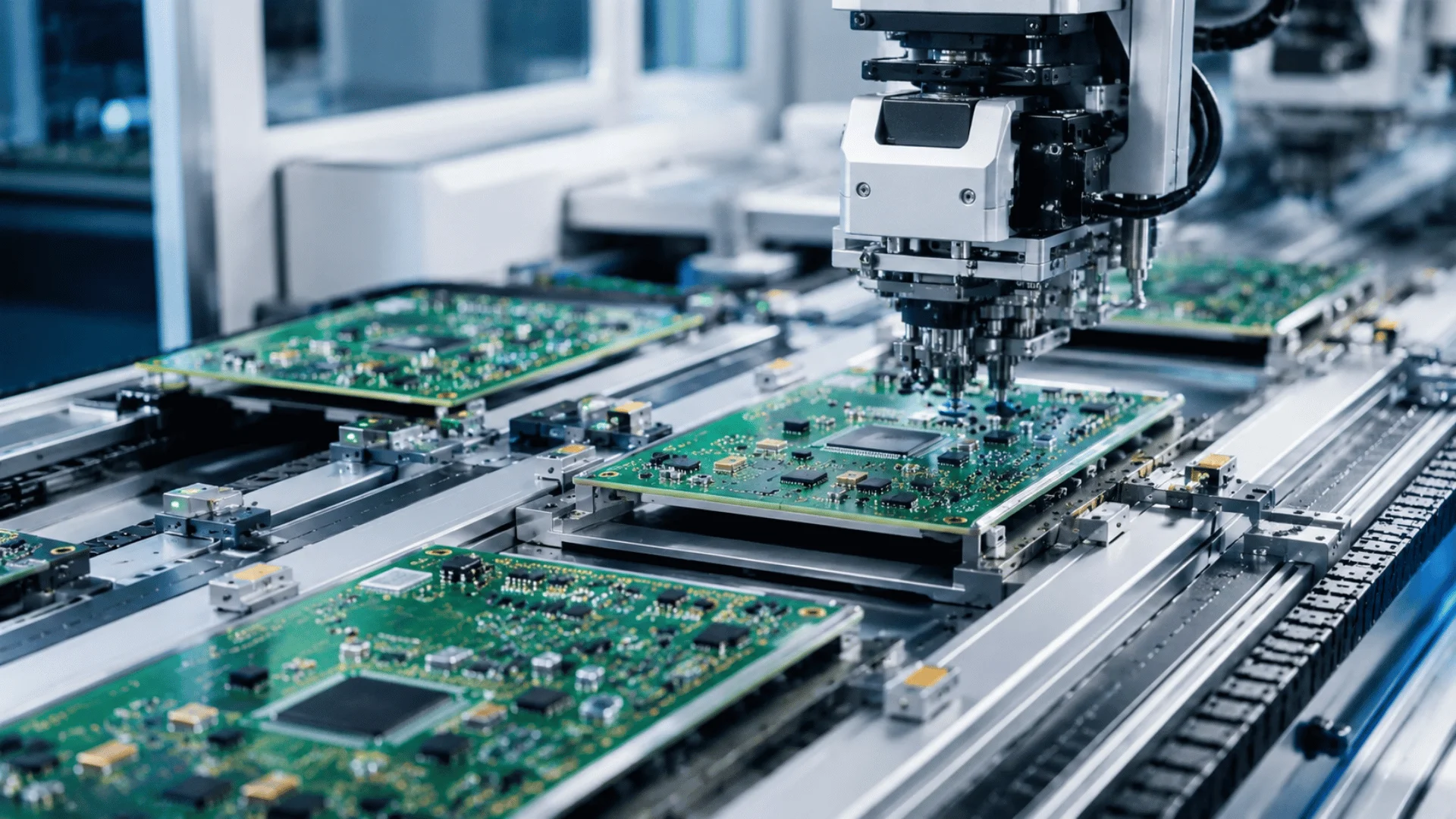

          – Assembly operational labor and machine runtime: Calculated primarily on total component placement counts or solder joint volumes per board. This metric reflects automated SMT placement runtime or manual through-hole pin insertion and wave soldering throughput on DIP lines.

          – Inspection, testing, and packaging fees: Encompasses operating overhead for automated optical inspection (AOI) to capture misalignment and solder bridging, X-ray radiography for bottom-terminated IC packages, and functional circuit testing (FCT) via custom bed-of-nails fixtures.

Technical variables that drive PCB assembly costs

   Beyond overall component volume, several technical engineering factors directly influence final assembly quotations:

          • Component complexity and packaging geometry: Incorporating miniature passive footprints (such as 0201 or 01005 packages) or bottom-terminated components with concealed pads (such as BGA, QFN, or WLCSP) requires high-resolution placement nozzles and mandatory X-ray inspection to verify hidden solder joint wetting, which elevates processing unit costs.

          • Production order volume: For short prototype builds consisting of a few dozen boards, fixed setup charges (stencils, feeder loading, and machine setup) are amortized across a small batch, resulting in higher per-unit pricing. Transitioning into mass production dilutes non-recurring engineering fees across thousands of boards, lowering unit costs significantly.

          • Board configuration (single-sided vs. double-sided assembly): Populating components on only one side reduces solder paste printing, pick-and-place machine passes, and oven reflow cycles by half compared to double-sided assembly requirements.

          • Conformal coating application: When circuit assemblies operate in harsh operating environments with high humidity, chemical fumes, or mechanical vibration, applying conformal protective coatings adds secondary chemical material costs and thermal/UV curing process time.

Practical strategies to optimize PCB assembly manufacturing budgets

   To optimize production expenditures while preserving board operational stability, enterprises can deploy several engineering strategies:

          – Design for manufacturability (DFM) optimization: Hardware designers should consult early with the assembly manufacturing floor to standardize component package sizes, avoid using excessive package varieties on a single board side, and maintain sufficient pad-to-pad clearances to prevent solder bridging defects.

          – Bill of materials (BOM) standardization: Avoid specifying single-source, proprietary, or obsolete electronic components. Designating approved drop-in replacements from mainstream component manufacturers enables purchasing departments to negotiate competitive component pricing and mitigate supply chain shortages.

          – Partnering with an integrated manufacturing provider: Rather than fragmenting production across multiple independent sub-contractors, selecting a single-source manufacturing partner—from tooling fabrication and plastic injection molding to board-level assembly and final box-build packaging—eliminates intermediate freight overhead and streamlines total quality management.

PCB assembly and OEM integration services at Zeng Hsing

   Zeng Hsing delivers complete PCB assembly and OEM/ODM turnkey manufacturing solutions backed by modern automated SMT lines and standardized DIP through-hole workstations. Our engineering team assists partners with DFM design reviews and BOM component cost optimization to achieve competitive unit pricing and durable product performance across every production batch.
