Turnkey plastic mold design to manufacturing at Zeng Hsing

     An integrated approach covering plastic mold design to manufacturing is increasingly prioritized by enterprises seeking to accelerate time-to-market and maintain tight control over component quality. At Zeng Hsing, we provide comprehensive in-house tooling services, supporting partners in transforming engineering drawings into durable, stable-running injection molds.

Benefits of choosing integrated plastic mold design to manufacturing

     Separating design and machining stages across multiple vendors often introduces tolerance deviations and extends troubleshooting cycles. Consequently, implementing an end-to-end process from plastic mold design to manufacturing delivers substantial practical value:

          √ High technical consistency: Our engineering team closely follows simulation data from start to finish, ensuring the finished mold precisely reflects every parameter from native 3D CAD models.

          √ Accelerated product launch cycles: A closed-loop workflow eliminates intermediary handoffs, allowing progression from plastic mold design to manufacturing to run seamlessly while minimizing repeated mold rework.

          √ Optimized capital expenditure: Businesses easily control tool steel procurement, machining run costs, and defect rates starting from the very first pilot sample shots.

          √ Streamlined long-term maintenance: Collaborating with a single partner simplifies tool lifespan tracking, preventive maintenance scheduling, and wear-component replacements.

>>>> Read more: Precision plastic injection mold manufacturing services meeting technical standards

Stages in the plastic mold design to manufacturing workflow at Zeng Hsing

     To ensure molds operate smoothly and achieve tight dimensional accuracy, Zeng Hsing applies a rigorous 4-step quality control workflow:

Stage 1: In-depth technical evaluation and 3D CAD design

     Engineers evaluate component drawings, assess demolding directions, verify draft angles, and simulate polymer flow using specialized CAD/CAM software. Depending on part complexity, we recommend suitable 2-plate or 3-plate mold architectures.

Stage 2: Precision mechanical machining

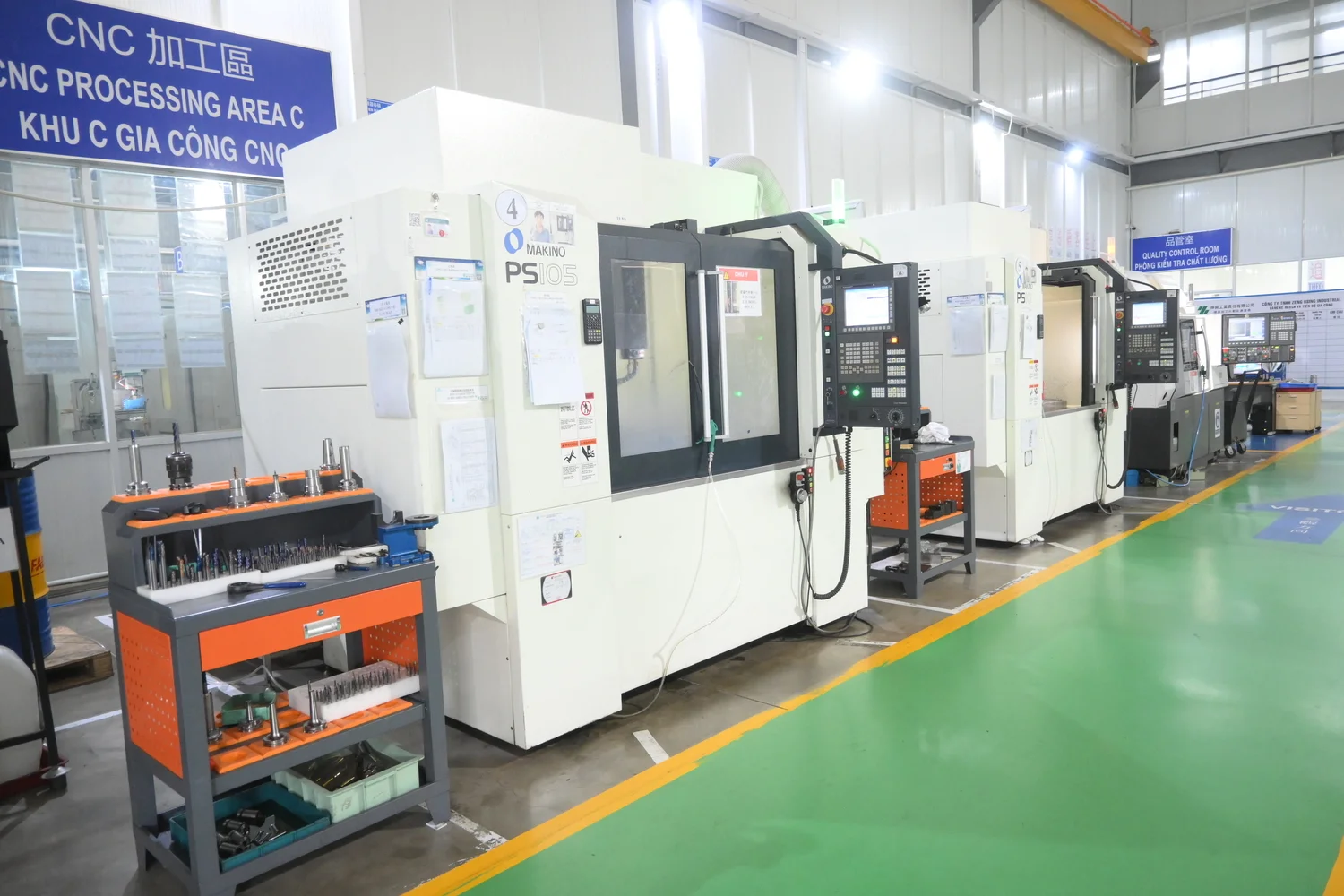

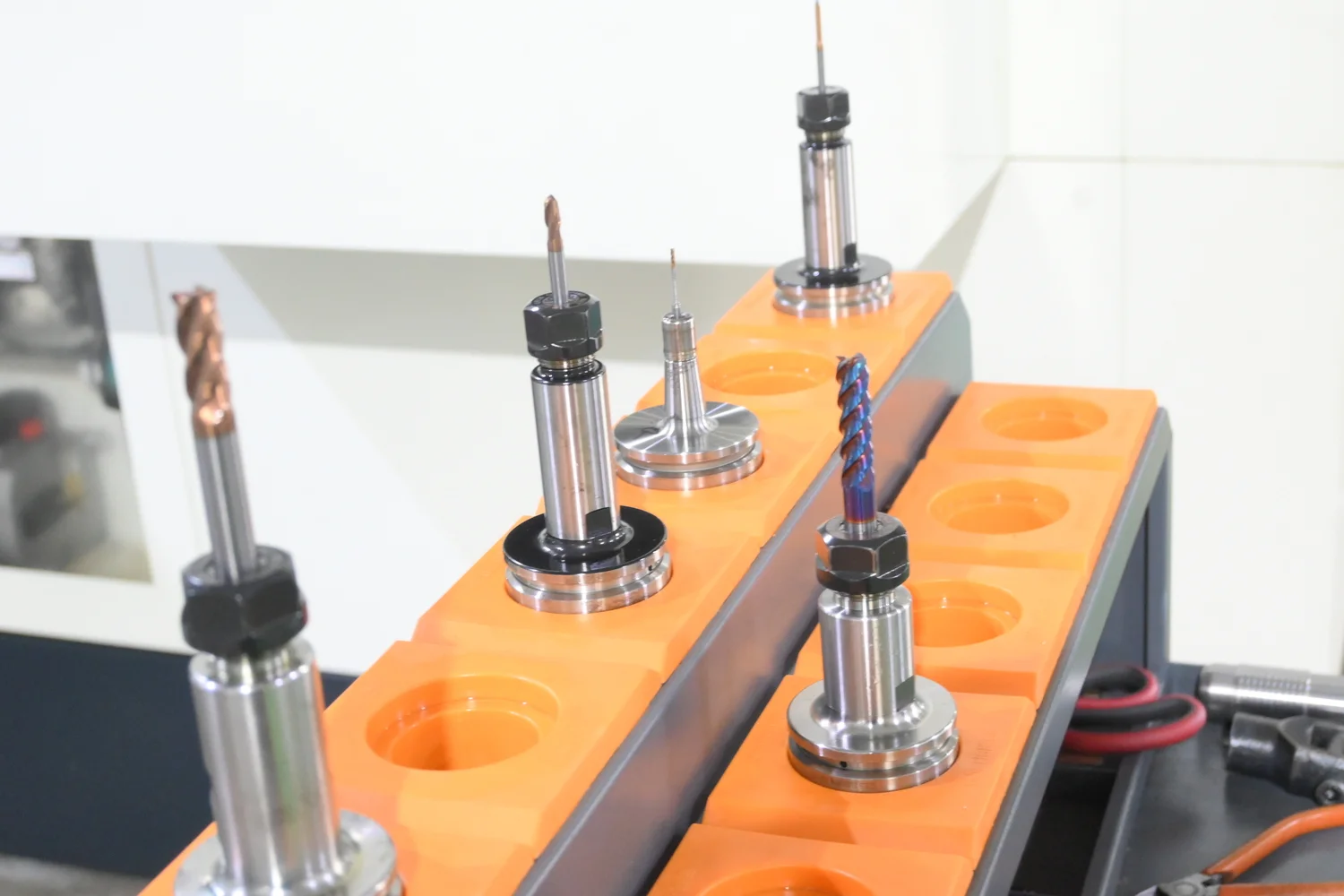

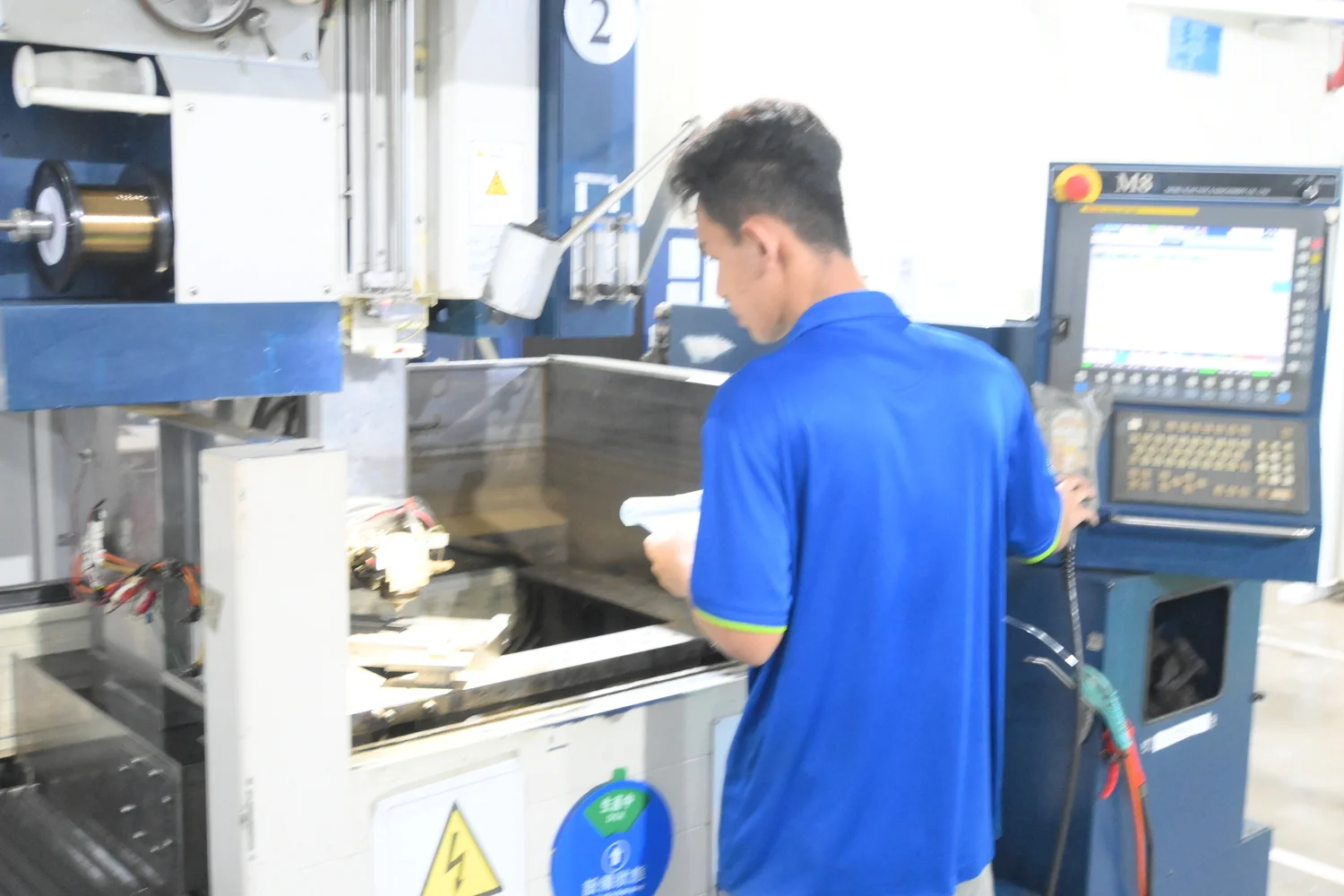

     Toolroom machining is executed using advanced equipment, including Makino PS105 and Makino F5 CNC milling centers, WEDM wire cutting systems, and sinker EDM machines. Tight internal radii, deep ribs, and core/cavity surfaces are processed with high accuracy.

Stage 3: Surface finishing and tool assembly

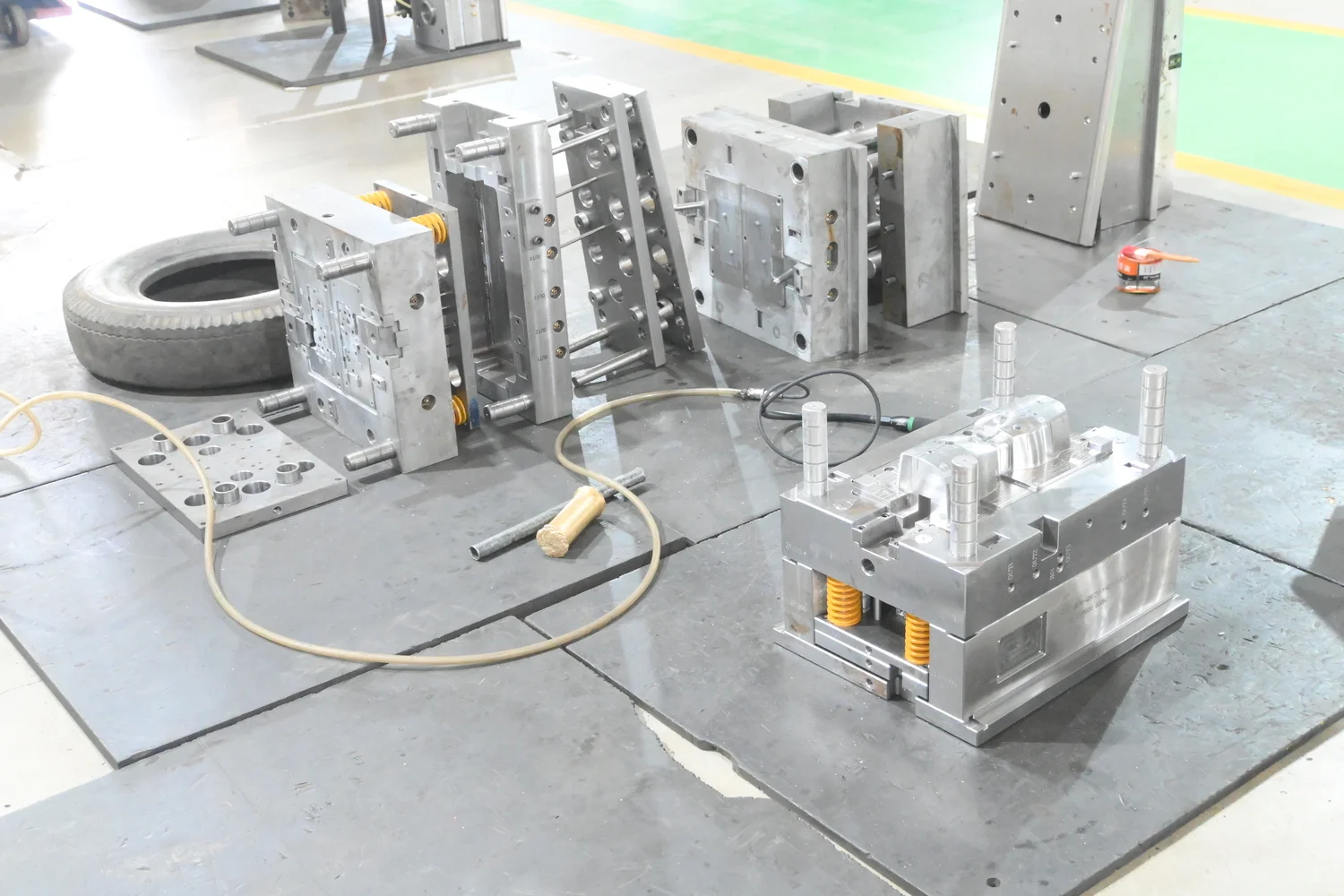

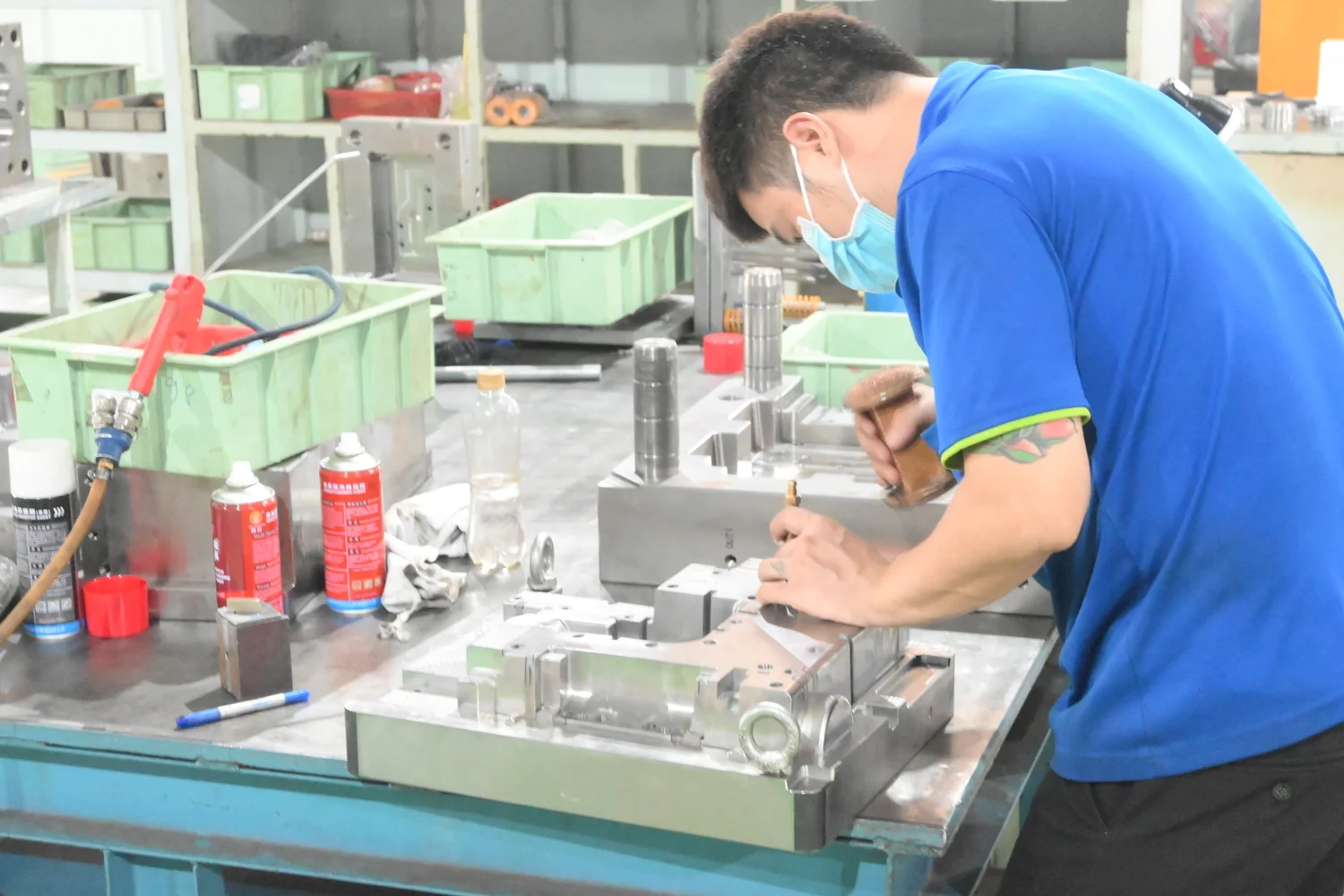

     Following roughing and finishing operations, mold components undergo surface treatments such as sandblasting, hand polishing, plating, or chemical texture etching. Skilled toolmakers then assemble mold plates, ejector pins, guide bushings, and cooling circuits on-site.

Stage 4: Mold trials and dimensional metrology

     We run physical sampling trials on our in-house injection molding presses, utilizing metrology equipment such as 3D laser scanners, 2.5D optical projectors, and digital height gauges to qualify parts prior to factory sign-off.

>>>> Read more: Custom local mold manufacturing near me with quick quotation

Equipment capabilities and technology for plastic mold manufacturing

     Zeng Hsing maintains a synchronized machinery ecosystem to accommodate diverse technical specifications:

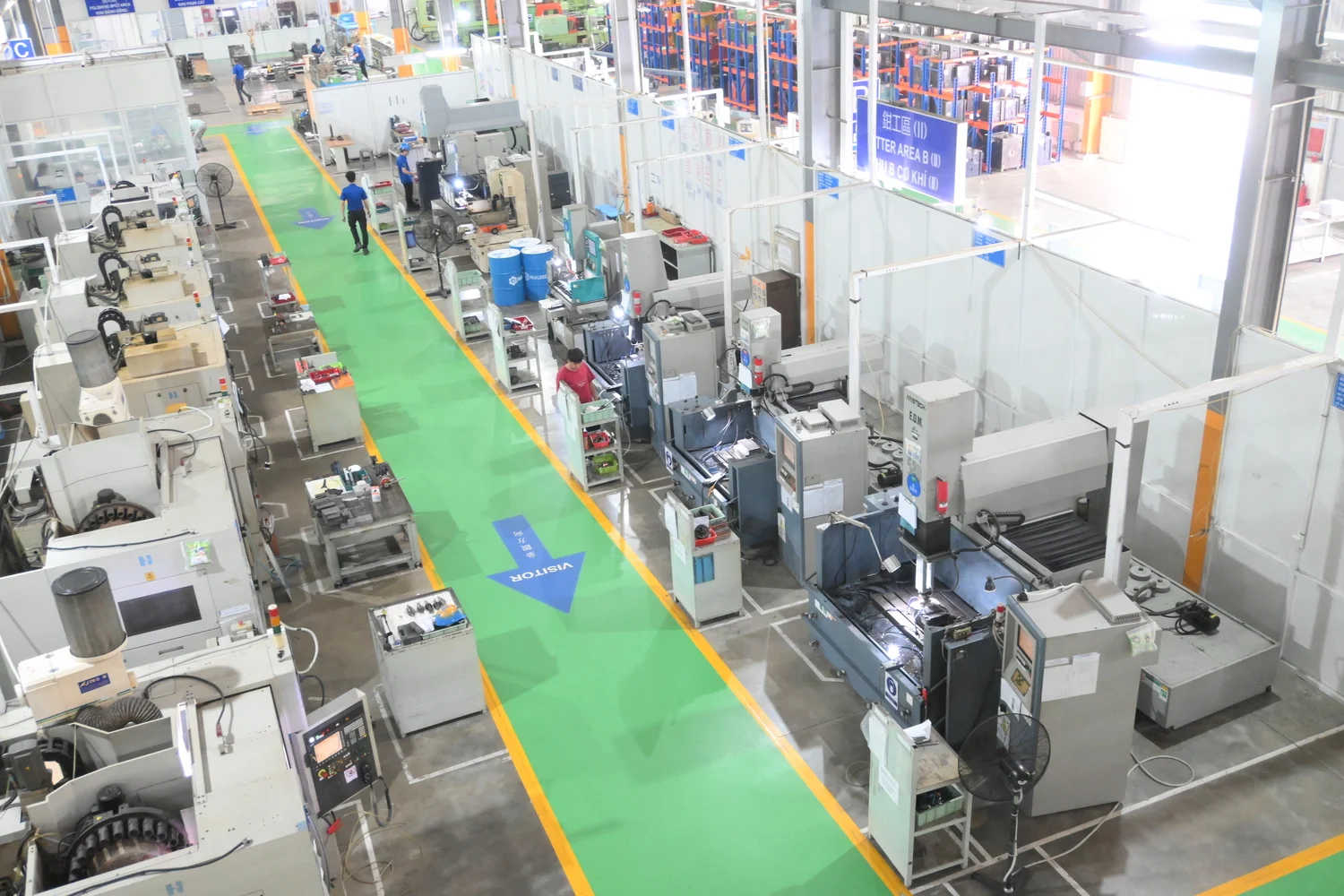

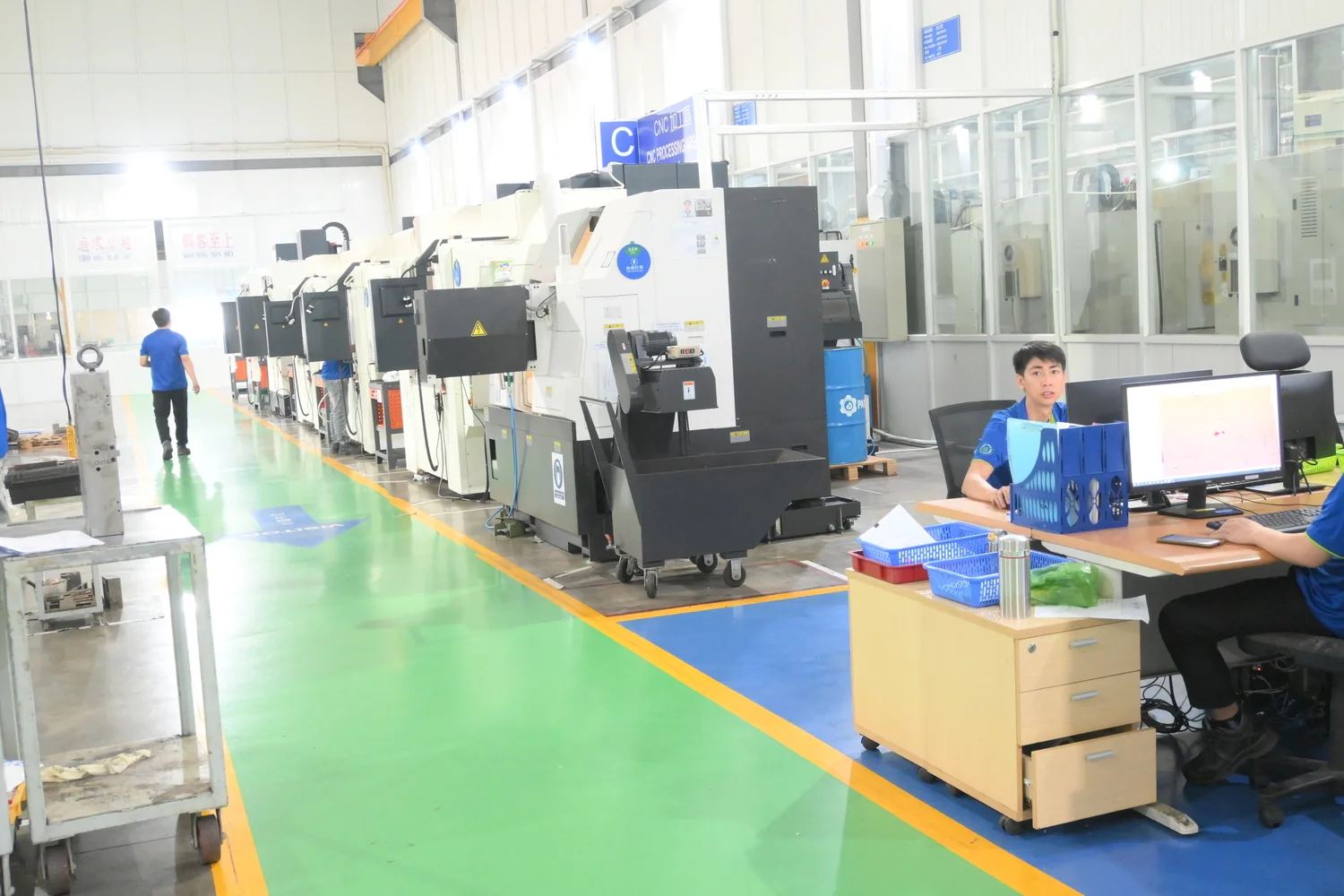

          • Complete machining fleet: Operating more than 30 specialized machine tools for turning, milling, grinding, laser welding, and EDM spark erosion, ensuring the transition from plastic mold design to manufacturing proceeds smoothly and continuously.

          • Compatibility with diverse engineering polymers: We fabricate tooling tailored for popular resins including ABS, POM, PP, PC, PMMA, and PC/ABS blends.

          • Versatile size handling capacity: Facilities handle mold bases up to approximately 800 mm, fully compatible with injection molding machines rated from 75 tons to 650 tons. Standard fabrication lead times range from 30 to 45 days for 2-plate molds and 35 to 60 days for 3-plate molds.

>>>> Read more: Reputable, high-precision mold manufacturing in HCMC

Considerations for optimizing costs from plastic mold design to manufacturing

     To maximize economic efficiency and maintain delivery schedules throughout plastic mold design to manufacturing, clients should keep several key factors in mind:

          » Standardizing initial part drawings: Providing comprehensive specifications on wall thickness, assembly tolerances, and aesthetic criteria enables engineers to establish optimal mold architectures from the outset.

          » Selecting tool steel grades matched to production volume: Based on projected production output (shot counts), enterprises can select compatible steel grades that ensure tooling durability without inflating material expenses.

          » Aligning gate locations and parting lines early: Pre-determining gate locations and parting line layouts ensures molded parts meet aesthetic expectations and reduces secondary deflashing labor downstream.

Contact Zeng Hsing for plastic mold design to manufacturing consultation

     Adopting a turnkey workflow from plastic mold design to manufacturing provides a solid foundation for stabilizing part quality and enhancing market competitiveness. Backed by experienced tooling engineers alongside in-house machining and trial equipment, Zeng Hsing is ready to assist you in turning technical concepts into durable, cost-effective molds.

     To request engineering consultation for plastic mold design to manufacturing, please visit our website at zenghsing.vn or contact our hotlines directly at (+84) 0355 846 965 (Mr. Nghia) or (+84) 0362 476 478 (Mr. Nam) for prompt support.
